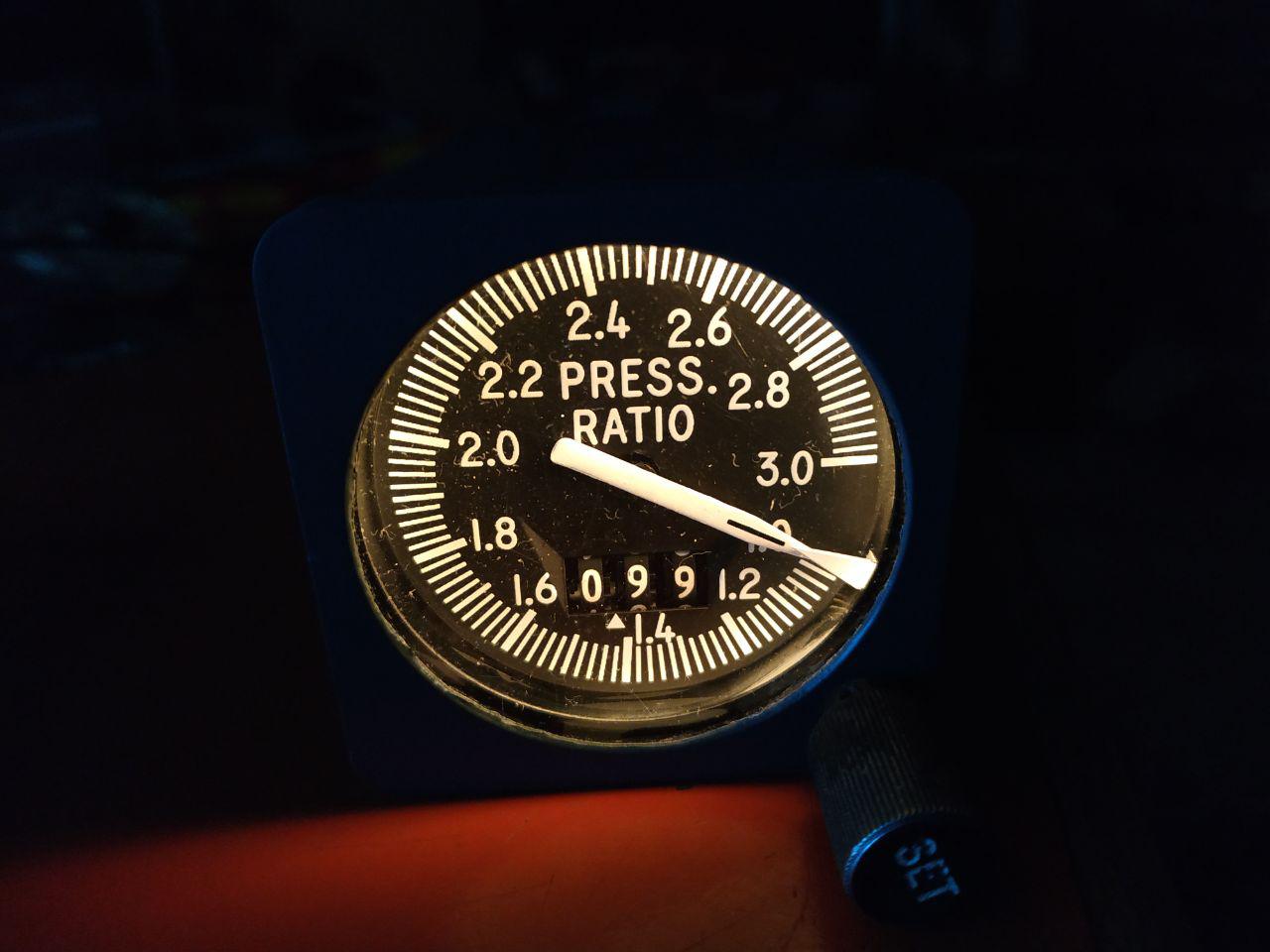

EPR gauges complete

First engine gauges converted for simulator use. These EPR gauges now run on5V high resolution stepper motors used in the automobile industry. Integral lightning is still comes from the original 5V bulbs. Hardware to interface the gauges via LAN is in development and should be available in March.

I have already converted about 10% of all gauges but this work is very time-consuming as every gauge is different and I need to prototype each gauge first.

Rear connector is now DSUB 15
Integral lightning is original 5V
Installed in the panel of D-ABUD ex Lufthansa. The gauges are tested already and will be connected to the simulator in March when the Hardware becomes available. Note the 2 Reverser lights, a modification done for Air Zimbawe for Water Injection.
